Home Lab

Welcome to the documentation for pitower, a Kubernetes home lab built on Talos Linux and managed entirely through GitOps with ArgoCD. This repository defines the complete infrastructure-as-code for an 11-node, mixed-architecture cluster: AMD and Intel mini PCs, a Dell R630, a GPU workstation and Raspberry Pis.

Architecture Overview

flowchart LR
    Internet((Internet))
    CF[Cloudflare DNS]
    Hub[towonel hub\nVPS]
    Agent[towonel-agent]
    EE[Envoy External\n10.20.10.239]
    EI[Envoy Internal\n10.20.10.238]
    Apps[Applications]
    TS[Tailscale\nVPN]
    User((User))

    Internet -->|"*.wibrow.dev"| CF
    CF -->|unproxied CNAME| Hub
    Hub -->|outbound tunnel| Agent
    Agent --> EE
    EE --> Apps

    User -->|LAN / VPN| TS
    TS --> EI
    EI --> Apps

Documentation Sections

Section	Description
Getting Started	Repository overview, prerequisites, and architecture
Infrastructure	Hardware, Talos Linux, cluster bootstrap, node management
Networking	Cilium CNI, Envoy Gateway, DNS, towonel tunnel, Tailscale
GitOps	ArgoCD setup, ApplicationSets, sync policies
Storage	Rook Ceph, OpenEBS, Garage S3, backup and restore
Security	Kanidm, External Secrets, SOPS, cert-manager
Monitoring	Prometheus, Grafana, VictoriaMetrics, VictoriaLogs, Fluent Bit
Applications	Media stack, home automation, self-hosted apps, databases
Operations	Justfile recipes, Talos commands, troubleshooting, upgrades
CI/CD	GitHub Actions, Docker builds, Renovate
Development	App template patterns, adding new apps
Reference	IP allocation table, full app catalog

Hardware Summary

Compute

Nodes	Hardware	Role	Architecture
worker-01..03	AMD Ryzen mini PCs (16 threads)	Control plane + workloads, Ceph OSDs	AMD64
worker-04..06	Intel nodes (4 cores, 8 GB)	Workers, Intel iGPU	AMD64
worker-07	Dell R630 (48 threads, ~755 GiB RAM)	Worker, ZFS storage, Garage S3, CI runners	AMD64
worker-08..10	Raspberry Pi 4 (4 GB)	Workers	ARM64
worker-ai-01	ASUS ProArt B850 + RTX 3090 Ti (16 threads, 64 GB)	GPU worker	AMD64

Storage

Device	Details
Rook Ceph	One SATA SSD per control plane node (worker-01..03), `ceph-block` default StorageClass
worker-07 ZFS	`fast` (4 SSDs, two mirrors) and `hdd` (4x 10K SAS, raidz1) pools behind OpenEBS hostpath classes and Garage
worker-ai-01	2 TB NVMe `models` volume for LLM weights
Synology NAS	NFS server `data` for media and bulk data

Network & Power

Device	Details
UniFi Cloud Gateway Fiber	Router, VLANs, DHCP, BGP peer for LoadBalancer and pod routes
TP-Link PoE switch	Powers the Raspberry Pi nodes
UniFi access points	Wi-Fi
PowerWalker UPS	Battery backup in the rack

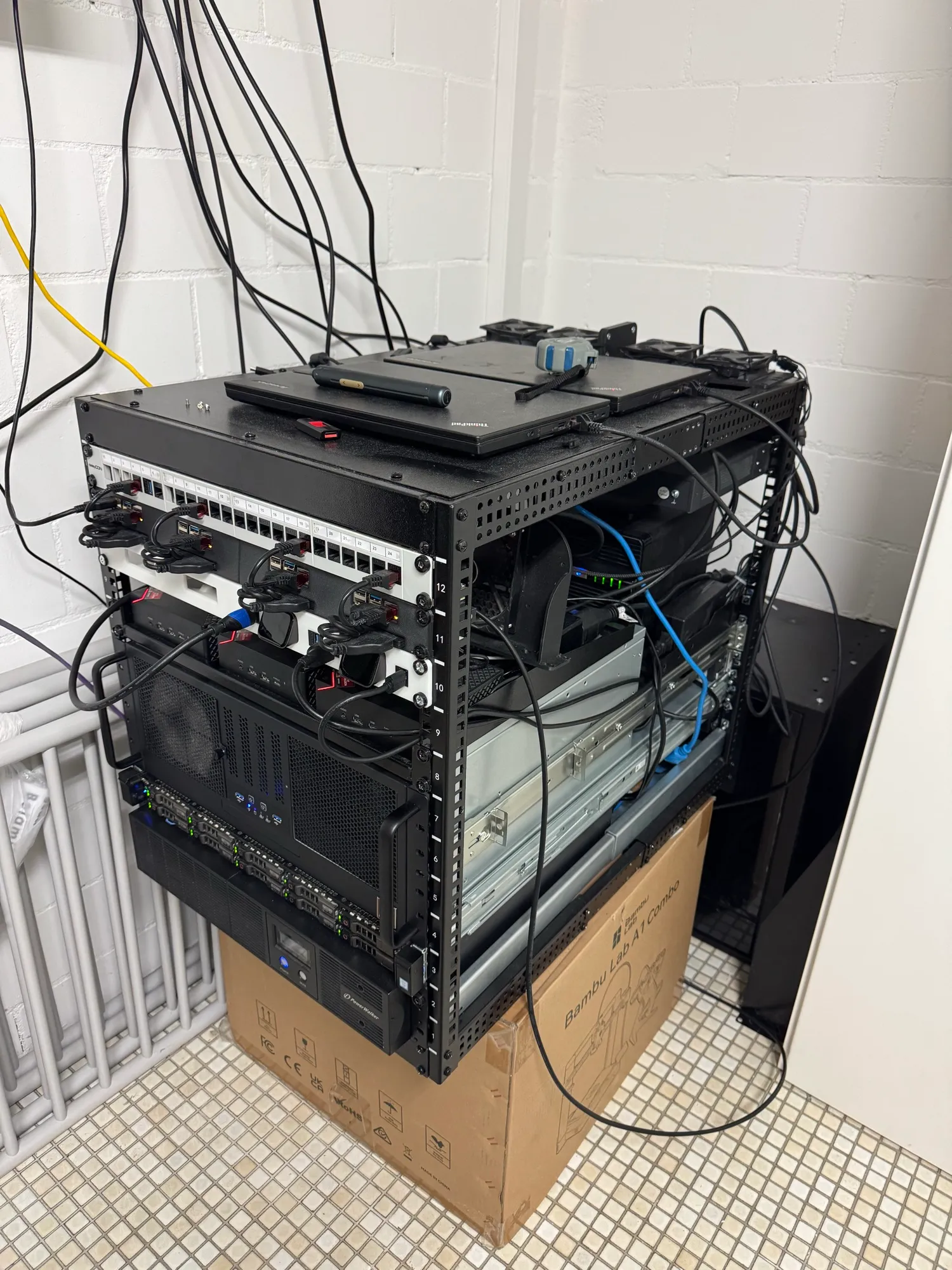

The hardware lives in an open-frame 12U rack with a patch panel and PDU. See Hardware for the full inventory.

Key Technologies

Layer	Technology	Purpose
Operating System	Talos Linux v1.14.0	Immutable, API-driven Kubernetes OS, lifecycle managed with topf
Kubernetes	v1.36.1	Dual-stack (IPv4 primary)
GitOps	ArgoCD (chart 10.9.6)	One ApplicationSet with a Git directory generator
CNI	Cilium 1.20.2	eBPF, kube-proxy replacement, native routing, L2 + BGP announcements; Multus for secondary interfaces
Ingress	Envoy Gateway	Gateway API, `envoy-external` and `envoy-internal` gateways
DNS	Cloudflare + external-dns	Automated DNS record management (Cloudflare and UniFi)
Tunnel	towonel	Self-hosted tunnel for public ingress, no port forwarding
VPN	Tailscale	Remote access via a subnet router
Storage	Rook Ceph + OpenEBS + Garage	Distributed block, local hostpath, and S3
Backups	kopiur (Kopia)	PVC snapshots to Garage S3; CNPG via the Barman Cloud plugin
Databases	CloudNativePG, Dragonfly, ClickHouse	PostgreSQL clusters, Redis-compatible cache, analytics
Secrets	External Secrets + Infisical, SOPS + age	Secrets synced from Infisical; bootstrap and Talos secrets encrypted in Git
Auth	Kanidm	OIDC / OAuth2 identity provider (+ LDAP)
Monitoring	kube-prometheus-stack, Grafana Operator, VictoriaMetrics, VictoriaLogs, Fluent Bit, Tempo, Gatus	Metrics, dashboards, logs, traces, and uptime
VMs	KubeVirt + CDI	Virtual machines on the AMD64 nodes
Domain	wibrow.dev	Managed via Cloudflare

Repository Structure

home-ops/
├── .github/workflows/   # CI/CD pipelines
├── .justfiles/          # just modules (docs, k8s, kanidm, sops, terraform, vm, ...)
├── ansible/             # Host provisioning (NUT, towonel hub, ...)
├── docs/                # These pages (Markdown)
├── kubernetes/
│   ├── apps/pitower/    # Application manifests: {category}/{app}
│   ├── argocd/          # ApplicationSets (applied manually)
│   ├── bootstrap/       # ArgoCD install, self-managed after bootstrap
│   └── components/      # Reusable kustomize components (kopiur, pvc, cnpg-db-shared)
├── talos/
│   └── pitower/         # topf.yaml, patches (all/, control-plane/, node/<host>/), extensions, addons
├── site/                # Astro project that builds docs/ into this site
├── terraform/           # AWS, Cloudflare, UniFi, and more
├── justfile             # Root task runner (imports the modules above)
└── mise.toml            # Tool versions and environment (KUBECONFIG, SOPS_AGE_KEY_FILE)
